Name: 1-1/2HP 1PH 110V Fusion F1 Table Saw
SKU: 895143

Product Details ＋

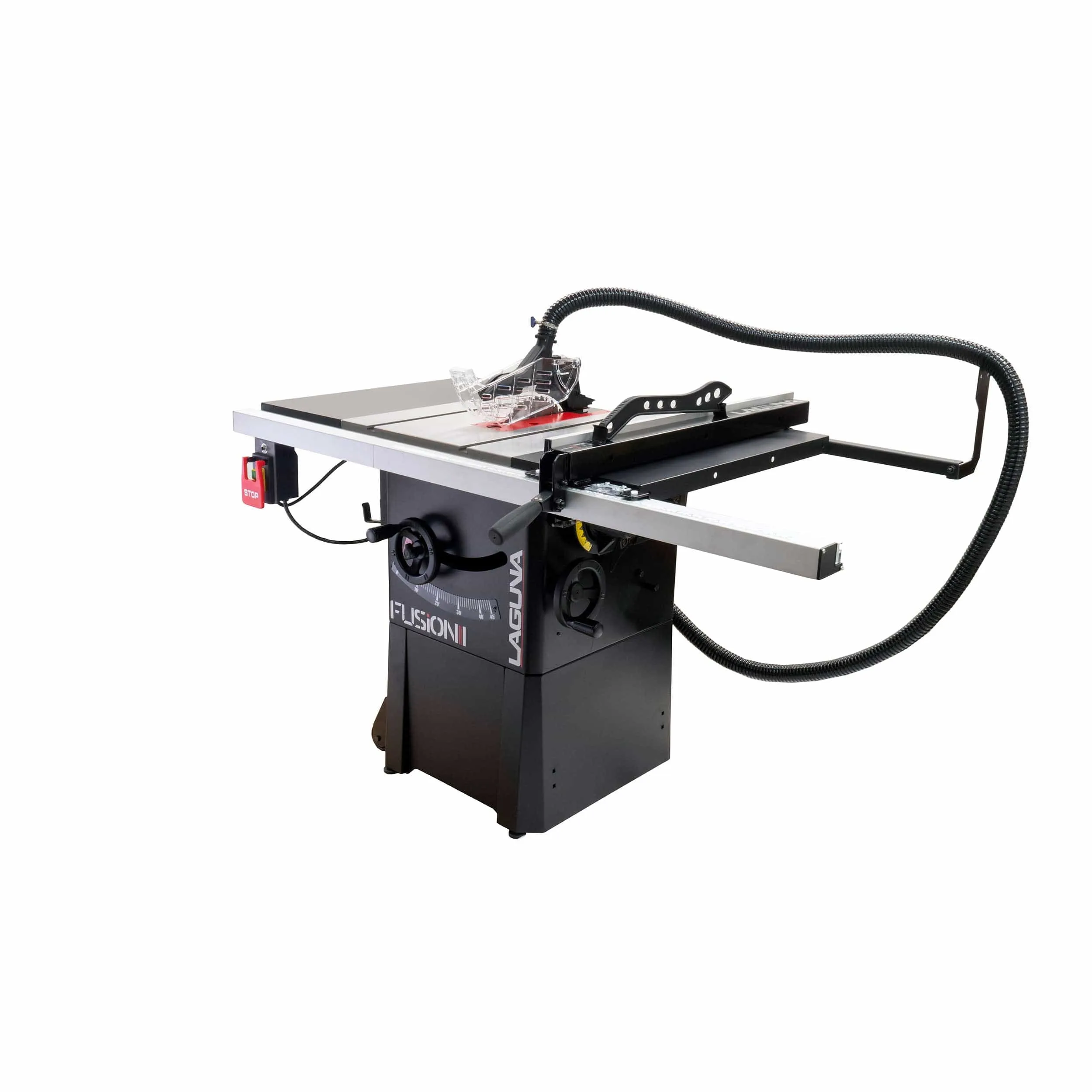

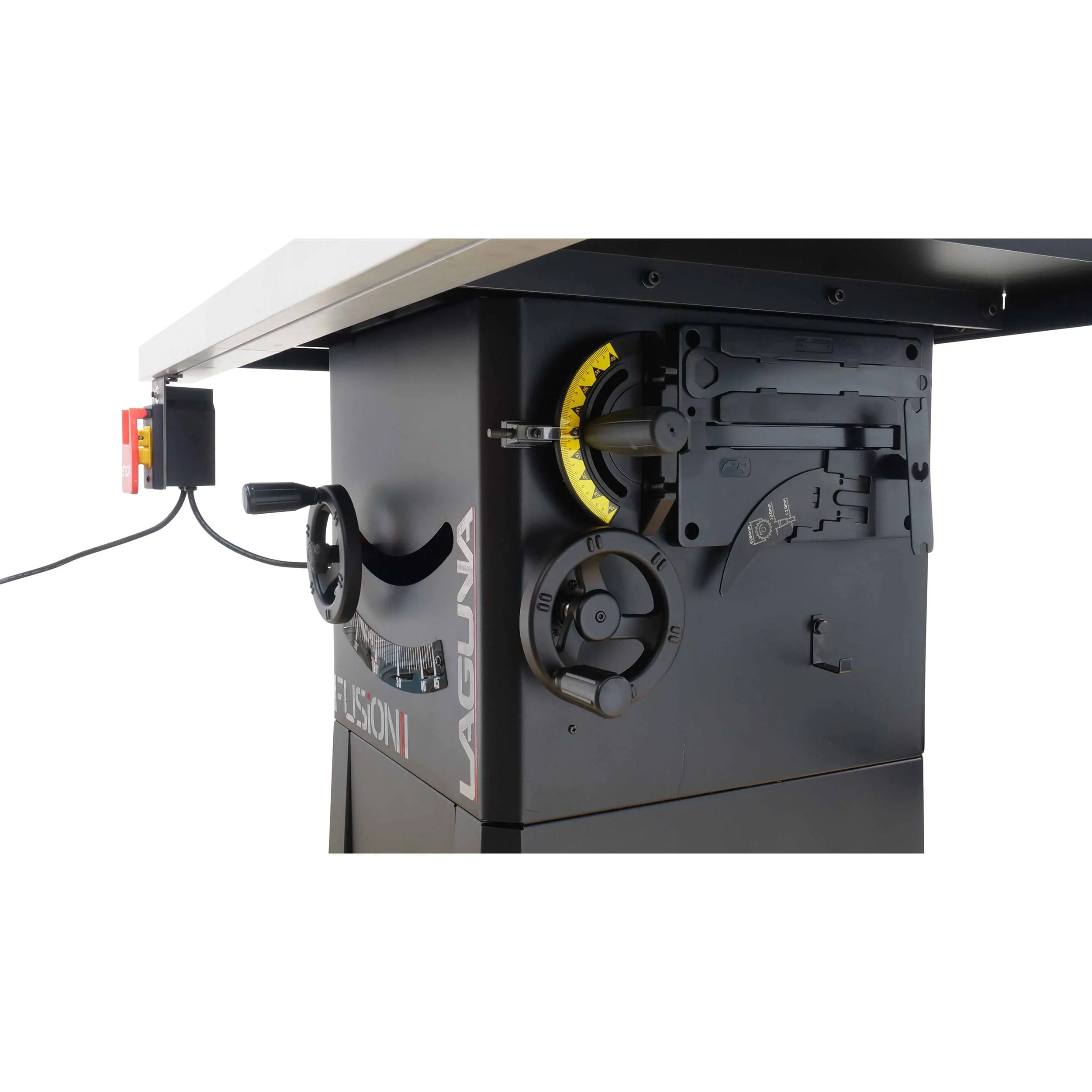

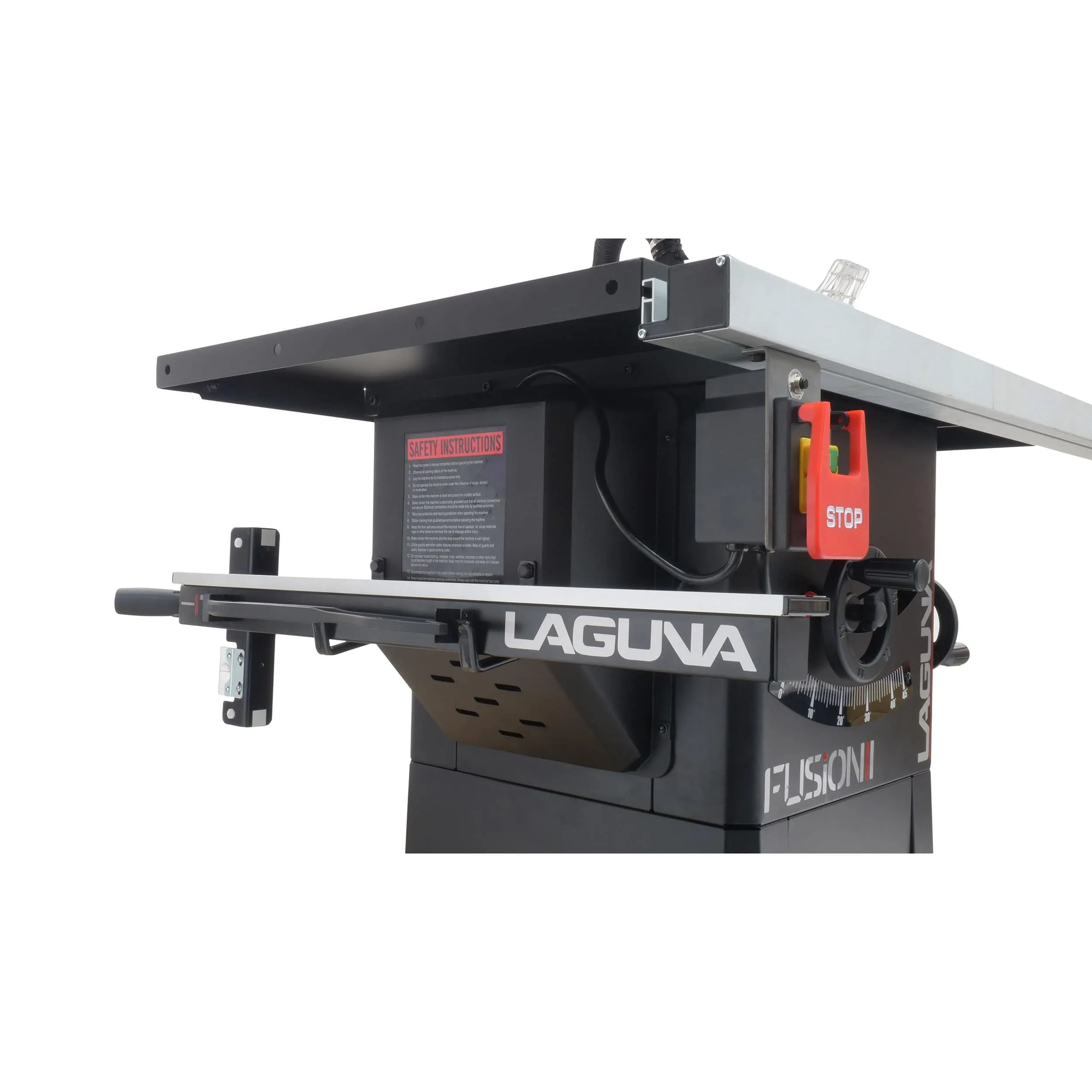

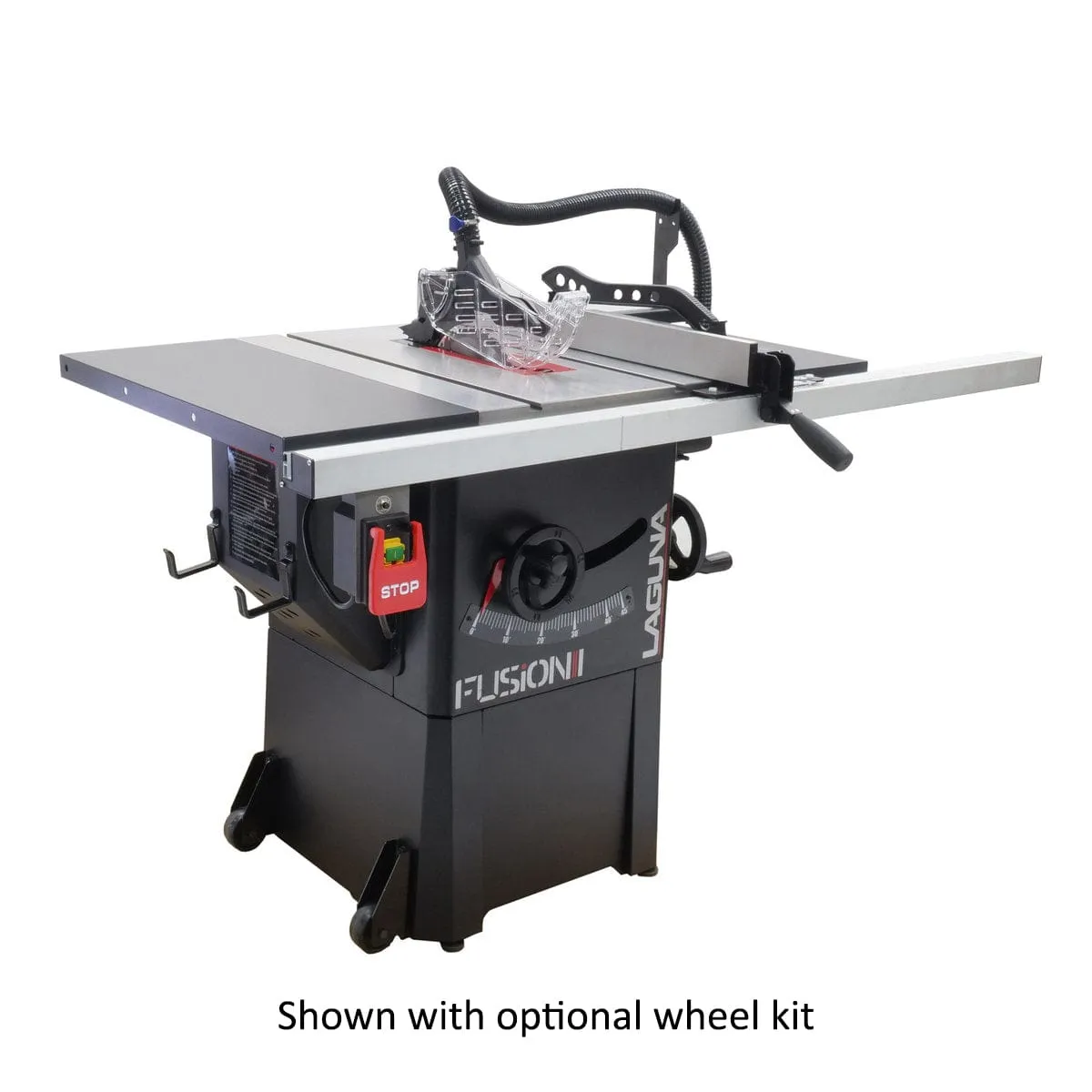

The Laguna Fusion F1 Table Saw is a feature-rich cutting machine at an affordable price. Designed for demanding woodworkers with a sleek look, the Fusion F1 is ready to start processing wood in your shop.

Permanently lubricated bearings and Acme screws on the inside and a precision-ground cast iron table with cast aluminum alloy upper and lower trunnions mean this saw is built to last from the inside out. Steel table wings and cabinet complete the package.

Integrated dust collection keeps your work surface clear by utilizing dust collection over and under the blade along with a sealed base.

The on-board tool storage system keeps your fence, miter gauge and push stick neatly stowed when not in use.

Includes Laguna Fusion F1 Table Saw, 10” x 60T Saw Blade, Aluminum Rail-Steel Body Fence, Dust Collection Guard, Miter Gauge, Blade Guard, Arbor Wrench, Riving Knife, Push Stick, Blade Changing Tool and Standard Throat Plate.

Specifications

Motor: 1.5 HP/110V/TEFC Capacitor Start Induction with Poly-V Belt Drive
Motor Speed: 3450 RPM
Starter Switch: Magnetic
Rip Capacity: 30"
Blade Size: 10"
Vertical Cut Height: 3-1/8”
Cut Height at 45°: 2-1/8"

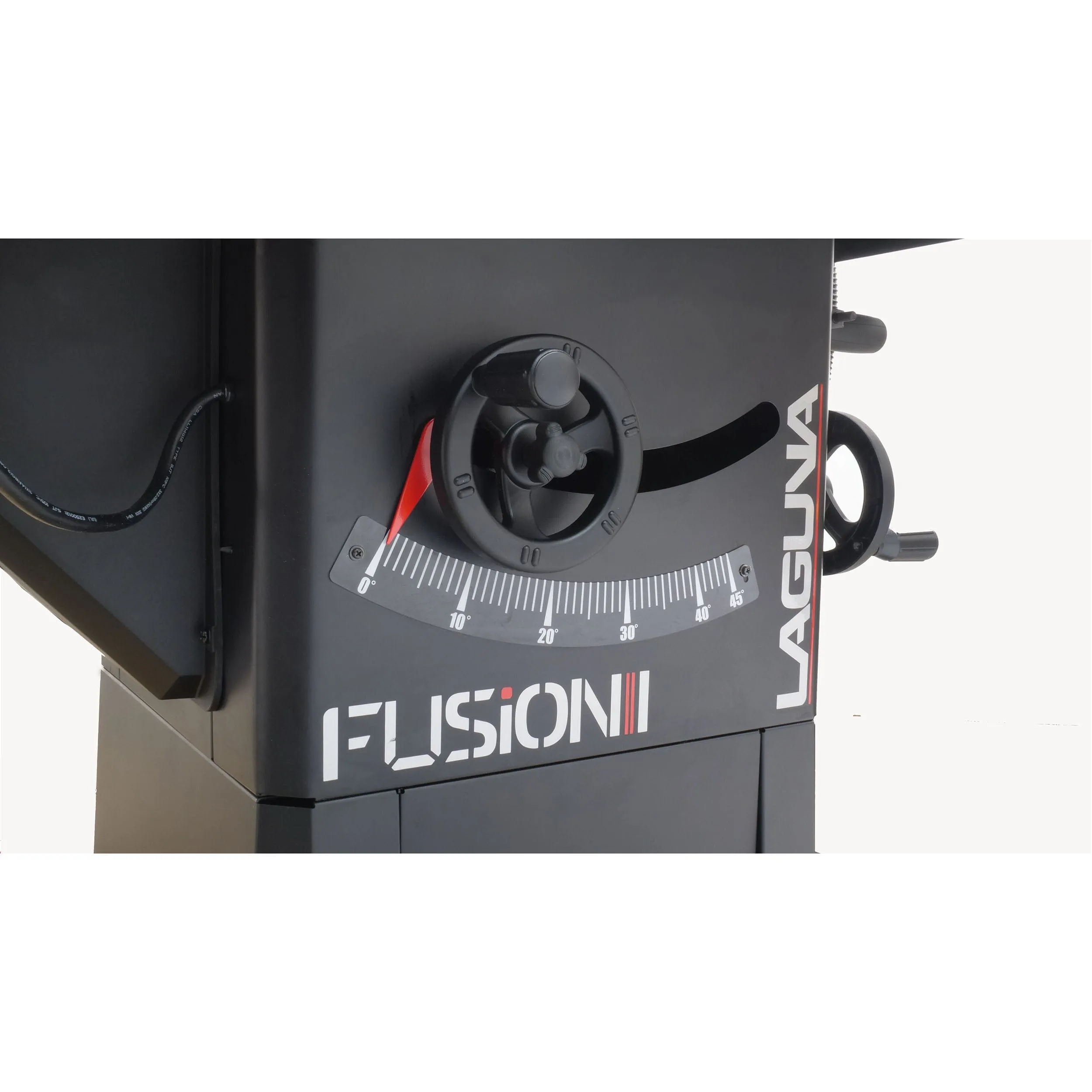

Blade Tilt: 0-45° Left
Minimum Kerf: 3mm ~1/8" (actual: 0.1875")
Maximum Kerf (Dado Blade): 13/16"
Arbor Speed: 4000 RPM
Arbor Diameter: 5/8"
Miter Slot: 3/4" to 1" T-slot
Throat Plate: Zero Clearance Square Die-Cast, w/adjustment
Fence: Single Rail Cam Action
Base Size: 19" L x 20" W
Floor to Table Height: 34-3/4"
Table Size: 27"L x 20" W
Extension Wing: L27" W12" (x2)
Throat Plate Size: 14-5/8" L x 4-1/16" W x 1/2" T
Dust Port Size: 3-7/8" OD
CFM Requirement: 400 CFM
Overall Size: 39-3/4" L x 59-5/8" W x 38" H
Machine Weight: 200 lb.
Shipping Weight: 280 lb.
Shipping Dimensions: 30" L x 40" W x 30" H
Warranty: 2 year

Electrical Specifications

Power Requirements: 110V-1PH-60HZ
Amperage (FLA): 12 AMP
Plug Included: 5-15
Circuit Breaker Required: 110V - 20 AMP
Receptacle Required: 5-15

Shipping / Billing Information

This product ships direct from the manufacturer:

Your order will ship in approximately 7-21 business days.
This product is considered special order. Your account will be charged when you place your order.
Express or overnight shipping is not available for this product.
Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
Liftgate and Residential Delivery is covered with the excess weight fee, and the freight company will call the day before delivery to set up a time at no charge to you.

Return Information

Laguna does not accept returns. If your shipment was damaged, please refuse delivery, for defective items, please contact Woodcraft Supply customer service @ 1-800-535-4482.

Warranty Information

New woodworking machines sold by Laguna Tools carry a two-year warranty effective from the date of shipping. Laguna bandsaw blades' welds are backed by their 1-yr manufacturer's warranty. Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship, parts and materials. Laguna Tools will repair or replace, without charge, any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect. They require that the defective item/part be returned to Laguna Tools with the complaint. In the event the item/part is determined to be damaged due to lack of maintenance, cleaning or misuse/abuse, the customer will be responsible for the cost to replace the item/part, plus all related shipping charges.

For warranty repair information, call 1-800-332-4094.
